Motor mount for the SD20/SD25 when a 3GM30, 3HM(35) or 3YM20/30 is in front of it. Also suitable for the SD40/50 with a 3JH3E, 3JH4E or 3JH5 in front.

This engine mount fits the engines listed below.

Yanmar 3GM, Yanmar 3GM30,…

This engine mount fits the engines listed below.

Vibration damper with a stiffness of 75 shore. Used with the 2GM(20), 3GM(30), 3HM(35) and the YM series engines. Formerly: 128377-08341

The above engines come standard with 2x75…

This engine mount fits the engines listed below.

Vibration damper with a stiffness of 100 shore. Used with the 2GM(20), 3GM(30), 3HM(35) and the YM series engines. (formerly 128377-08351)

The above engines come standard with…

O-ring oil scraper filter YS series. And seal filter housing GMYM series Yanmar 24341-000440.

This o-ring fits the engines below.

Yanmar YSB8, Yanmar YSB12

Yanmar YSE8, Yanmar YSE12

Yanmar YSM8, Yanmar YSM12

Yanmar 2QM15,…

Plug 30 for block. Applied in GM and YM series

Yanmar 1GM(10) > 2x

Yanmar 2GM(20) > 4X

Yanmar 3GM(30) > 5x

Yanmar 3HM(35) > 5x

Yanmar 2YM15 > 3x

Yanmar 3YM20 > 4x

Yanmar 3YM30(AE) > 4x

This inlet valve fits the engines below.

Yanmar YSB8,Yanmar YSE8,Yanmar YSM8.

Yanmar 3HM, Yanmar 3HMF, Yanmar 3HM35, Yanmar 3HM35F.

This exhaust valve fits the engines below.

Yanmar YSB8,Yanmar YSE8,Yanmar YSM8.

Yanmar 3HM, Yanmar 3HMF, Yanmar 3HM35, Yanmar 3HM35F.

This impeller cover comes with gasket and fits the engines below.

Yanmar 2GM20F, Yanmar 3GM30F

Yanmar 3HMF30F, Yanmar 3HM, Yanmar 3HM35F

Does not fit engines with EU on the type plate

This valve cover gasket fits the engines below.

Yanmar 3HM

Yanmar 3HMF

Yanmar 3HM35

Yanmar 3HM35F

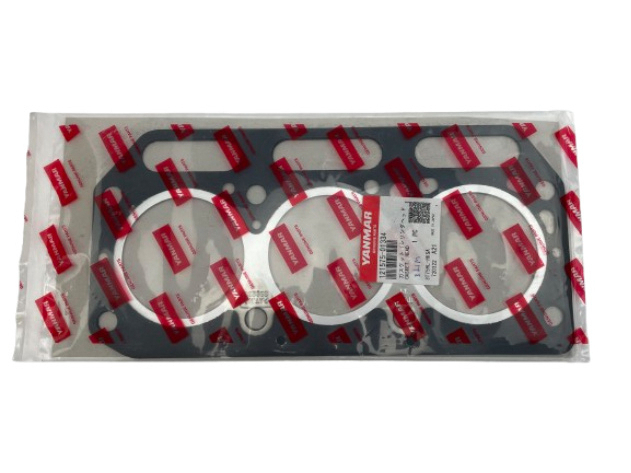

This head gasket fits the engines below.

Yanmar 3HM

Yanmar 3HMF

NB! not for the 3HM35(F)

This head gasket fits the engine below.

Yanmar 3HM35

Yanmar 3HM35F

NB! not for the 3HM (F)

This bearing set contains the parts below.

1 main bearing, 1 rear bearing, 2 intermediate bearings and 3 connecting rod bearings for the Yanmar 3HM35.

121520-02100 Main Bearing
721550-02810 Intermediate bearing 1
721550-02800…

All necessary gaskets for the engine block of the Yanmar 3HM35 (Including seals and o-rings) for both the single and double cooled 3HM35.

121575-01751 Gasket, oil sump
121575-01512 Gasket, gear case
121450-32021 Gasket, pump…

Head set for the Yanmar 3GM35 (single cooling) with all gaskets, fire plates, etc.

128671-1330 Gasket, head
121550-11310 Gasket Bonnet
124950-11340 Seal, valve stem
121550-11451 Gasket, chamber
128275-11500 Cover
128275-11490…

Starter motor for the 4JH series engines up to 1991 & the 3HM series engines.

NB! not suitable for the later types of the 4JH series such as 4JH2, 4JH3 and higher.

This starter motor fits the engines below.

Yanmar 3HM, Yanmar…

Zinc anode set for the 3HM(35) consisting of.

3 x zinc anode 27210-200300

3 x gasket 123210-09310

(2 zinc anode on the side in the block. 1 zinc anode in the rear cylinder head)
